Products

Battery Energy Storage Systems

Battery Storage Systems

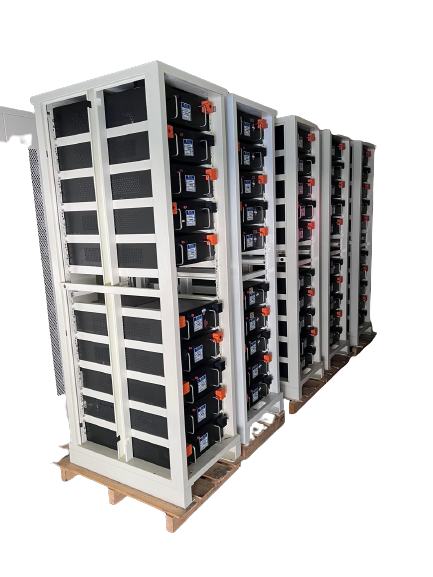

100KW – 500KW Litihum ION Battery Backup

Lithium-ion (Li-ion) battery backup systems simplify your switch to backup battery power. Designed with customized scalability in mind, you can add to your solution very easily with the ability to recharge using your desired renewable source and an ability to feed back to the grid in demand response scenarios. Equipped with STOBA® technology this system has multiple protection mechanisms in addition to effectively suppressing battery thermal explosion, while also effectively improving the self-discharge phenomenon caused by a slight short circuit, and its safety is better than other types of batteries.

Battery Storage Systems

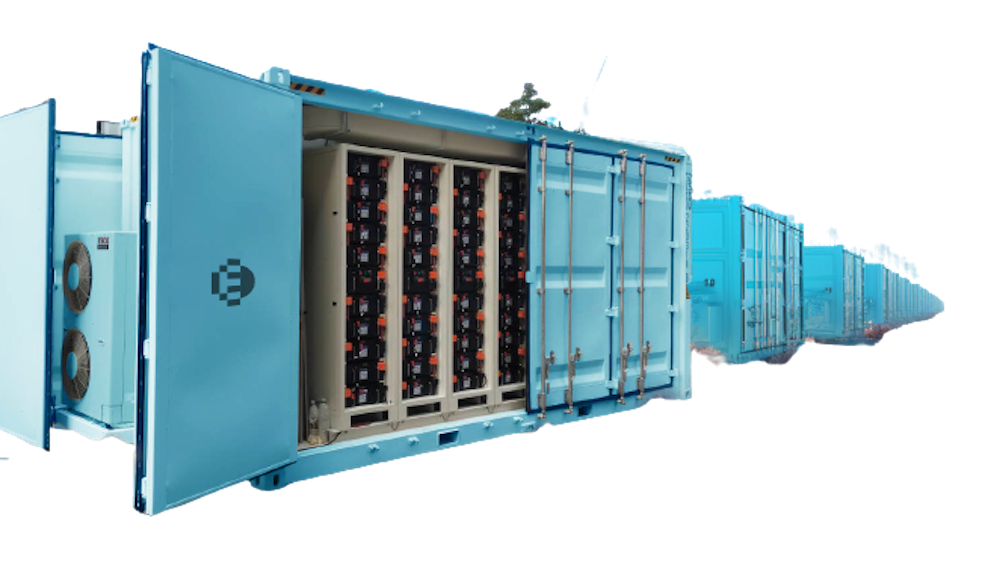

500KW – 1MW Battery Backup

Our Utility-scale battery storage systems have scalable storage capacity ranging from around a few megawatt-hours (MWh) to hundreds of MWh. This solution is designed for large grid scale utilities, renewable projects and other decarbonized infrastructure projects. Equipped with STOBA® technology this system has multiple protection mechanisms in addition to effectively suppressing battery thermal explosion, while also effectively improving the self-discharge phenomenon caused by a slight short circuit, and its safety is better than other types of batteries.


Home Batteries

Home Batteries

Home Battery STorage Unit

Our Utility-scale battery storage systems have scalable storage capacity ranging from around a few megawatt-hours (MWh) to hundreds of MWh. This solution is designed for large grid scale utilities, renewable projects and other decarbonized infrastructure projects. Equipped with STOBA® technology this system has multiple protection mechanisms in addition to effectively suppressing battery thermal explosion, while also effectively improving the self-discharge phenomenon caused by a slight short circuit, and its safety is better than other types of batteries.


EV Chargers

Stand Not Included (Optional)

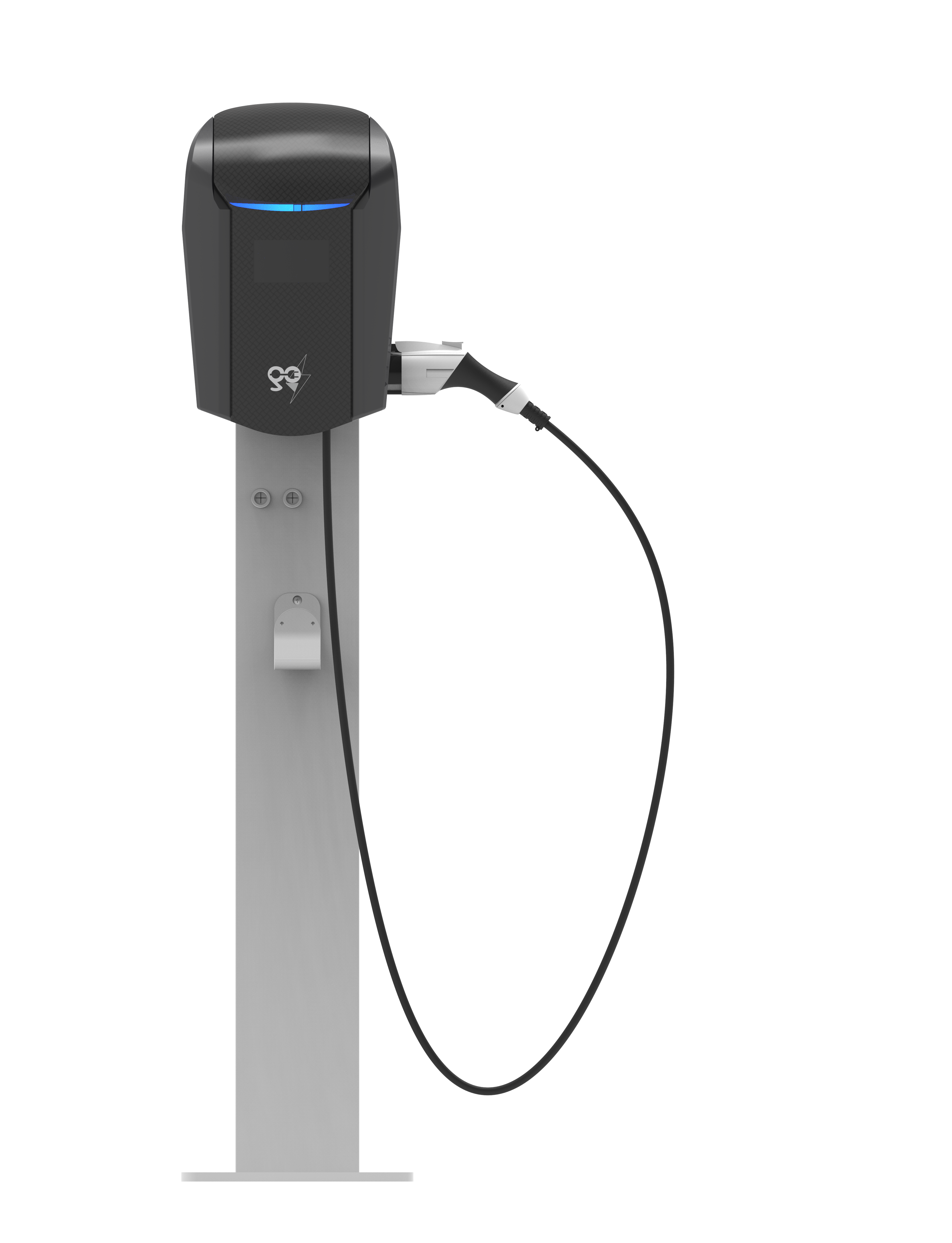

EV Charger

L2-U2 – Wall Mount/with stand

Size

283 mm (W) x 431 mm (H) x 165 mm (D) (wall-mount)
283 mm (W) x 1450 mm (H) x 165 mm (D) (with stand)

Input

Voltage 220VAC, Single phase
Frequency 50/60Hz
Current 32A

Output

Voltage 220VAC
Current 32A Max.
Power 7kW
Connector CNS 15511 / SAE-J1772

Environmental

Operating Temp -25°C ~ 50°C
Storage Temp -30°C ~ 70°C
Humidity <95% (non-condensing)
Mechanical Ingress Protection IP55

Protection

Over voltage/Under voltage/Over current/
Over temp./Surge/Residual current/Ground fault/Welding
Regulation CNS 15511
Push Button Emergency Stop

Network

WIFI/Ethernet/4G (Optional)

User Authentication

RFID (optional) / APP (optional)

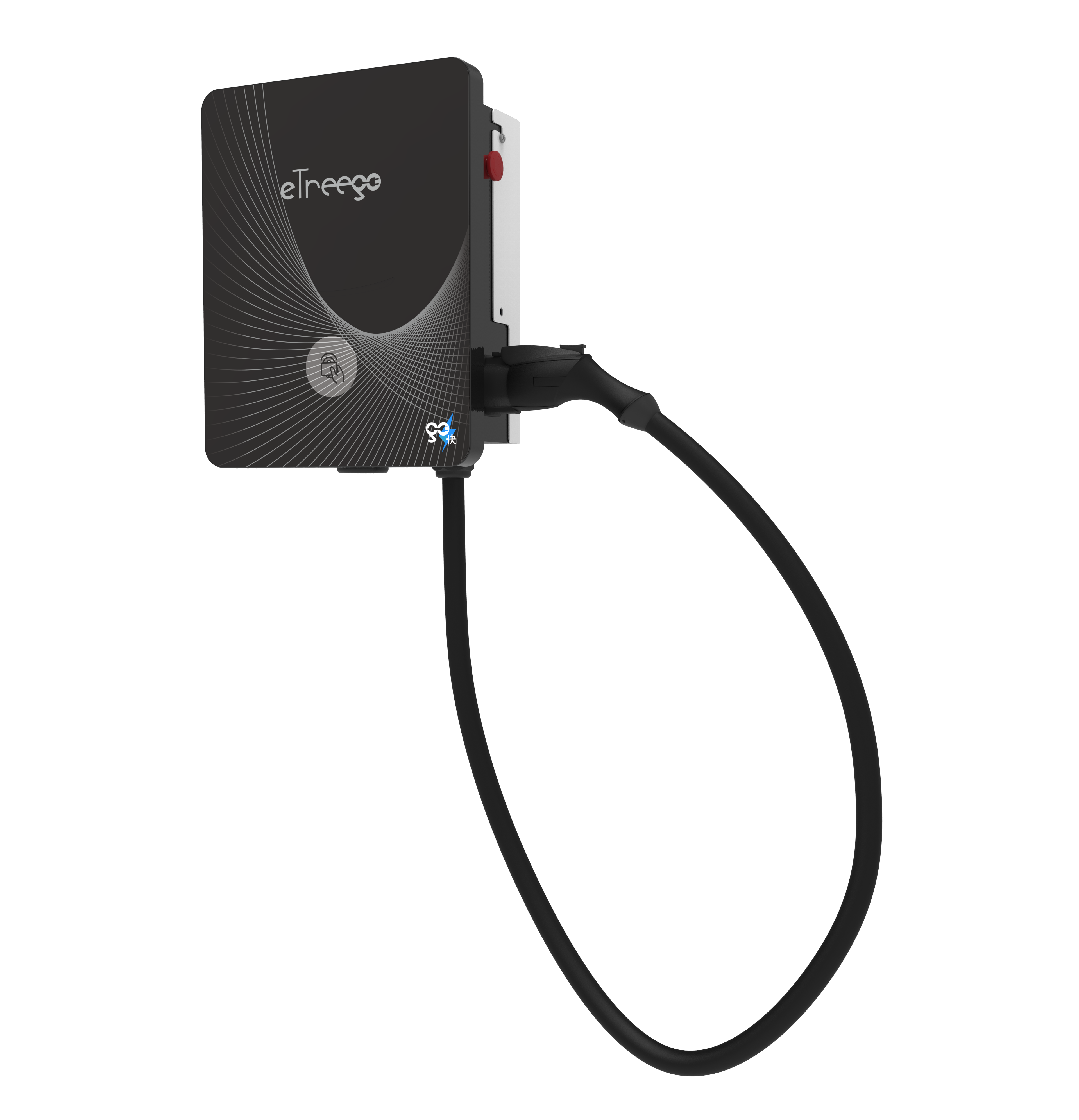

EV Charger

L2-S280SAE – Wall Mount / With Stand (optional)

Input

Voltage 200VAC~240VAC, Single Phase, L+G+N
Frequency 50/60Hz
Current 80A (Max.)

Output

Voltage 220VAC
Current 80A (Max.)
Power 17.6kW (Max.)
Connector SAE J1772 (80A)

Environmental

Operating Temp -30°C[-22°F] ~ +50°C[+122°F]
Storage Temp -30°C[-22°F] ~ +70°C[+158°F]
Humidity <95% (Non-condensing)
Altitude <2000m[6561ft]
Ingress Protection IP55 / NEMA TYPE 3R

Enclosure protection

IK10
Cooling
Natural Cooling
Mechanical
Dimension (W x D x H)
339mm[13.3in] x 181mm[7.1in] x 423mm[16.7in]

User Interface

Display
NON
Push Buttons
Emergency Stop

User Authentication

OCPP 1.6J (up to 2.0) / RFID card reader / 2D barcode (TBD) / APP (TBD)
Network Connection
Ethernet / 4G (optional) /Wi-Fi (optional)

miscellaneous

Weight < 10kg[22lb] (with plug)
Cable Length 5.5m[18ft]
Protection Over voltage/Under voltage/Over current/ Surge/Residual current/Ground fault
Certification UL, FCC (TBA 2023.Q2)

EV Charger

30kW EV DC FAST CHARGER

Input

Voltage 380VAC, 3P+N+PE
Frequency 50/60Hz
Current ≦ 50A
Efficiency 95% (Full load)

Output

Voltage 200~800VDC
Current 80 A @ 375V
Power 30kW (Max.)
Connector CCS1 , CCS2 , CHAdeMO
Charging port 2 (not operated at same time)

environmental

Operating Temp -10°C ~50°C
Storage Temp -20°C ~70°C
Humidity <95% (Non-condensing)
Altitude <2000m[6561ft]
Ingress Protection IP55

enclosure protection

IK10
Cooling
Forced air
Dimension (W x D x H)mm
785 x 275 x 630 (wall-mount)
785 x 275 x 1580 (with stand)

User Interface

Display 10-inch LCD with touchscreen
Language English / Traditional Chinese
Push Buttons
Emergency Stop

User Authentication

RFID card reader

Network Connection
RS-485 / Ethernet / 4G / WIFI (OCPP 1.6)

miscellaneous

Weight < 10kg[22lb] (with plug)
Cable Length > 4m
Protection Over voltage/Under voltage/Over current/
Over temp./Surge/Residual current
Certification UL, FCC (TBA 2023.Q2)

EV Charger

180kW DC Fast Charger DSPUE1-180D1

Input

Voltage 480VAC, 3P+N+PE(Wye configuration)
Frequency 50/60Hz
Efficiency 95% (Full load)

Output

Voltage 200~950VDC
Current 300A
Power 180kW (Max.)
Connector CCS1
PDU180kW, 90kW

Environmental

Operating Temp -30°C ~50°C
Storage Temp -30°C ~70°C
Humidity <95% (Non-condensing)
Altitude <2000m[6561ft]
Ingress Protection Cabinet / Terminal NEMA 3R (IP55)

Enclosure protection

IK10 (Screen not included)
Cooling
Forced air
Mechanical
Dimensions (W x D x H)mm
Cabinet 1400 x 900 x 1900
Terminal 572[800] x 414[590] x 1763.5

User Interface

Display 16-inch LCD with touchscreen
Language English
Push Buttons
Emergency Stop

User Authentication

OCPP 1.6J (up to 2.0) / RFID card reader /
2D barcode (TBD) / APP (TBD)
Network Connection
Ethernet / 4G (optional) /Wi-Fi (optional)

miscellaneous

Weight Cabinet < 750kg, Terminal < 200kg
Cable Length > 5.5m[18ft]
Protection Over voltage/Under voltage/Over current/
Over temp./Surge/Residual current
Certification UL 2202, UL 2231-1/-2, FCC part 15B

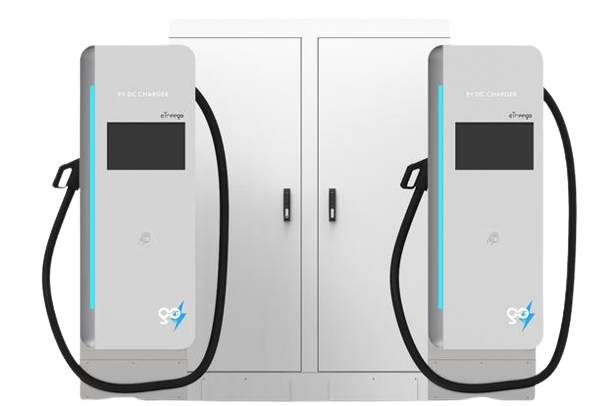

EV Charger

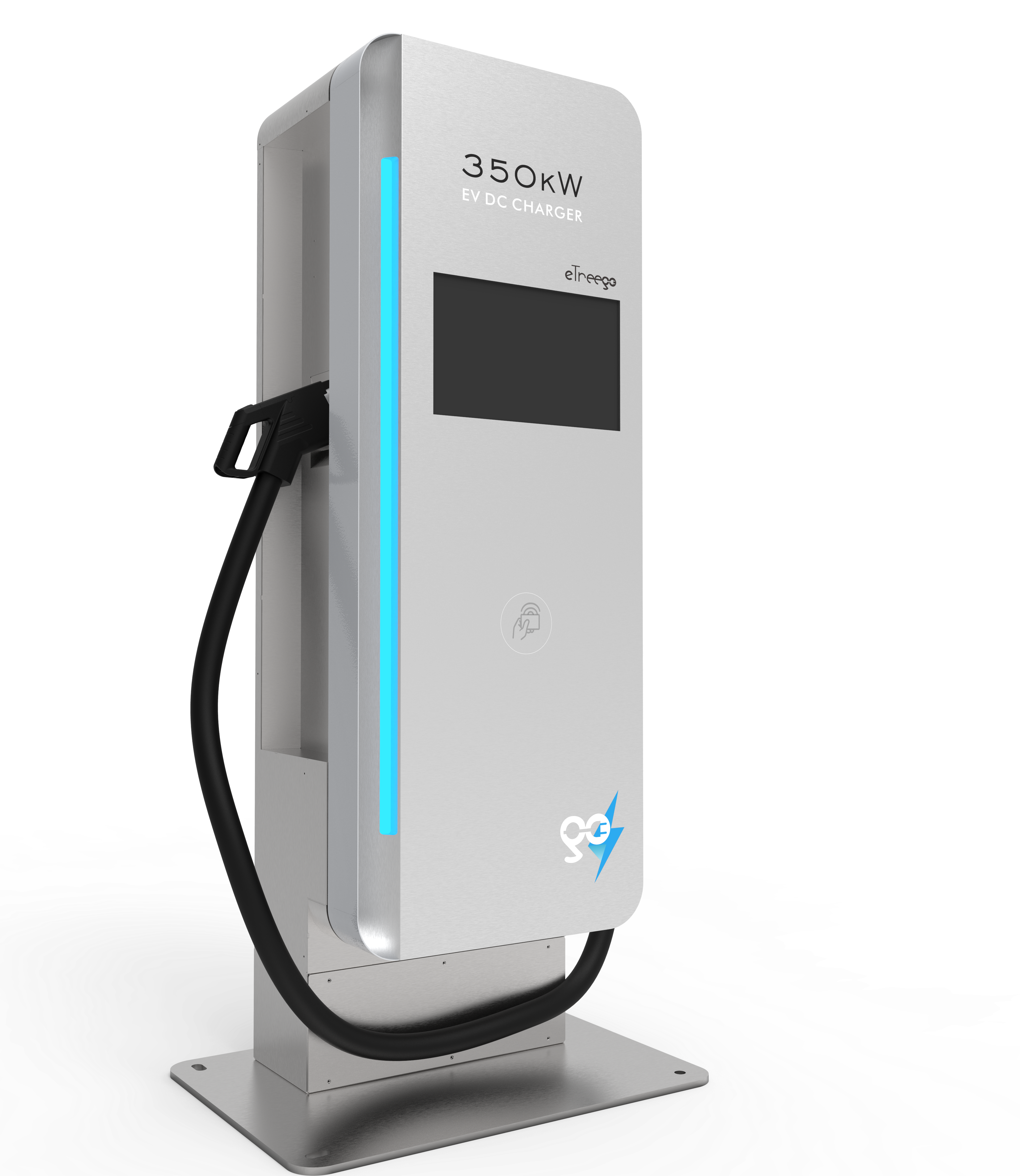

350kW DC Fast Charger – UL DSPUE1-350D1

Input

Voltage 480VAC, 3P+N+PE(Wye configuration)
Frequency 50/60Hz
Efficiency 95% (Full load)

Output

Voltage 200~950VDC
Current 500A (first 6 min, then reducing to 200A)
Power 350kW (Max.)
Connector CCS1
PDU 350kW, 175kW

Environmental

Operating Temp -30°C ~50°C
Storage Temp -30°C ~70°C
Humidity <95% (Non-condensing)
Altitude <2000m[6561ft]
Ingress Protection Cabinet / Terminal NEMA 3R (IP55)

Enclosure protection

IK10 (Screen not included)
Cooling
Forced air
Mechanical
Dimensions (W x D x H)mm
Cabinet 1400 x 900 x 1900
Terminal 572[800] x 414[590] x 1763.5

User Interface

Display 16-inch LCD with touchscreen
Language English
Push Buttons
Emergency Stop

User Authentication

OCPP 1.6J (up to 2.0) / RFID card reader /
2D barcode (TBD) / APP (TBD)
Network Connection
Ethernet / 4G (optional) /Wi-Fi (optional)

miscellaneous

Weight Cabinet < 800kg, Terminal < 200kg
Cable Length > 5.5m[18ft]
Protection Over voltage/Under voltage/Over current/
Over temp./Surge/Residual current
Certification UL 2202, UL 2231-1/-2, FCC part 15B

Learn More About Energy Plug
